Homogeneous elastic media¶
In this example we simulate wave propagation through a 3-dimensional homogeneous halfspace using a force source.
Setting up your workspace¶
Let’s start by creating a workspace from where we can run this example.
mkdir -p ~/specfempp-examples/homogeneous-halfspace-single-force
cd ~/specfempp-examples/homogeneous-halfspace-single-force
We also need to check that the SPECFEM++ executable directory is added to the
PATH.
which specfem3d
If the above command returns a path to the specfem3d executable, then the
executable directory is added to the PATH. If not, you need to add the executable
directory to the PATH using the following command.
export PATH=$PATH:<PATH TO SPECFEM++ DIRECTORY/bin>
Note
Make sure to replace <PATH TO SPECFEM++ DIRECTORY/bin> with the
actual path to the SPECFEM++ directory on your system.
Now let’s create the necessary directories to store the input files and output artifacts.
mkdir -p OUTPUT_FILES
mkdir -p OUTPUT_FILES/results
mkdir -p OUTPUT_FILES/DATABASES
mkdir -p DATA
mkdir -p DATA/meshfem3D_files
touch specfem_config.yaml
touch force.yaml
Generating a mesh¶
To generate the mesh for the homogeneous halfspace we need a mesh parameter file,
Mesh_Par_file, interface files (interfaces.txt and interface1.txt),
and the mesher executable, xmeshfem3D, which should have been compiled during
the installation process.
Note
The 3D mesher is based on the mesher developed for SPECFEM3D Cartesian. More details on the meshing process can be found in the SPECFEM3D Cartesian documentation.
We first define the meshing parameters in a Mesh Parameter file.
Mesh Parameter File¶
#-----------------------------------------------------------
#
# Meshing input parameters
#
#-----------------------------------------------------------
MESH_A_CHUNK_OF_THE_EARTH = .false.
CHUNK_MESH_PAR_FILE = dummy.txt
# coordinates of mesh block in latitude/longitude and depth in km
LATITUDE_MIN = 0.0
LATITUDE_MAX = 80000.0
LONGITUDE_MIN = 0.0
LONGITUDE_MAX = 100000.0
DEPTH_BLOCK_KM = 60.d0
UTM_PROJECTION_ZONE = 11
SUPPRESS_UTM_PROJECTION = .true.
# file that contains the interfaces of the model / mesh
INTERFACES_FILE = DATA/meshfem3D_files/interfaces.txt
# file that contains the cavity
CAVITY_FILE = no_cavity.dat
# Number of nodes for 2D and 3D shape functions for hexahedra.
# We use either 8-node mesh elements (bricks) or 27-node elements.
# If you use our internal mesher, the only option is 8-node bricks (27-node elements are not supported).
NGNOD = 8
# number of elements at the surface along edges of the mesh at the surface
# (must be 8 * multiple of NPROC below if mesh is not regular and contains mesh doublings)
# (must be multiple of NPROC below if mesh is regular)
NEX_XI = 15
NEX_ETA = 12
# number of MPI processors along xi and eta (can be different)
NPROC_XI = 1
NPROC_ETA = 1
#-----------------------------------------------------------
#
# Doubling layers
#
#-----------------------------------------------------------
# Regular/irregular mesh
USE_REGULAR_MESH = .true.
# Only for irregular meshes, number of doubling layers and their position
NDOUBLINGS = 0
# NZ_DOUBLING_1 is the parameter to set up if there is only one doubling layer
# (more doubling entries can be added if needed to match NDOUBLINGS value)
NZ_DOUBLING_1 = 40
NZ_DOUBLING_2 = 48
#-----------------------------------------------------------
#
# Visualization
#
#-----------------------------------------------------------
# create mesh files for visualisation or further checking
CREATE_ABAQUS_FILES = .false.
CREATE_DX_FILES = .false.
CREATE_VTK_FILES = .true.
# stores mesh files as cubit-exported files into directory MESH/ (for single process run)
SAVE_MESH_AS_CUBIT = .false.
# path to store the databases files
LOCAL_PATH = OUTPUT_FILES/DATABASES
#-----------------------------------------------------------
#
# CPML
#
#-----------------------------------------------------------
# CPML perfectly matched absorbing layers
THICKNESS_OF_X_PML = 12.3d0
THICKNESS_OF_Y_PML = 12.3d0
THICKNESS_OF_Z_PML = 12.3d0
#-----------------------------------------------------------
#
# Domain materials
#
#-----------------------------------------------------------
# number of materials
NMATERIALS = 1
# define the different materials in the model as:
# #material_id #rho #vp #vs #Q_Kappa #Q_mu #anisotropy_flag #domain_id
# Q_Kappa : Q_Kappa attenuation quality factor
# Q_mu : Q_mu attenuation quality factor
# anisotropy_flag : 0 = no anisotropy / 1,2,... check the implementation in file aniso_model.f90
# domain_id : 1 = acoustic / 2 = elastic
1 2300.0 2800.0 1500.0 0 0 0 2
#-----------------------------------------------------------
#
# Domain regions
#
#-----------------------------------------------------------
# number of regions
NREGIONS = 1
# define the different regions of the model as :
#NEX_XI_BEGIN #NEX_XI_END #NEX_ETA_BEGIN #NEX_ETA_END #NZ_BEGIN #NZ_END #material_id
1 15 1 12 1 9 1
#-----------------------------------------------------------
#
# Boundary conditions
#
#-----------------------------------------------------------
STACEY_ABSORBING_CONDITIONS = .true.
TOP_FREE_SURFACE = .true.
BOTTOM_FREE_SURFACE = .false.
At this point, it is worthwhile to note a few key parameters within the
Mesh_Par_file as it pertains to SPECFEM++.
This version of SPECFEM++ does not support simulations running across multiple cores/nodes, i.e., we have not enabled MPI. Relevant parameter values:
37NPROC_XI = 1 38NPROC_ETA = 1
The mesh domain is defined by the coordinates and depth. In this case we define a domain that is 100km x 80km x 60km. Relevant parameter values:
11LATITUDE_MIN = 0.0 12LATITUDE_MAX = 80000.0 13LONGITUDE_MIN = 0.0 14LONGITUDE_MAX = 100000.0 15DEPTH_BLOCK_KM = 60.d0 16UTM_PROJECTION_ZONE = 11 17SUPPRESS_UTM_PROJECTION = .true.
The number of elements along the XI and ETA directions define the horizontal resolution of the mesh:
33NEX_XI = 15 34NEX_ETA = 12
The path to the interfaces file is provided using the
INTERFACES_FILEparameter:20INTERFACES_FILE = DATA/meshfem3D_files/interfaces.txt
We define a single homogeneous material with density 2300 kg/m³, Vp = 2800 m/s, and Vs = 1500 m/s. The domain type is set to 2 (elastic):
90NMATERIALS = 1 91# define the different materials in the model as: 92# #material_id #rho #vp #vs #Q_Kappa #Q_mu #anisotropy_flag #domain_id 93# Q_Kappa : Q_Kappa attenuation quality factor 94# Q_mu : Q_mu attenuation quality factor 95# anisotropy_flag : 0 = no anisotropy / 1,2,... check the implementation in file aniso_model.f90 96# domain_id : 1 = acoustic / 2 = elastic 971 2300.0 2800.0 1500.0 0 0 0 2
We define a single region that spans the entire mesh and assigns material 1 to it:
106NREGIONS = 1 107# define the different regions of the model as : 108#NEX_XI_BEGIN #NEX_XI_END #NEX_ETA_BEGIN #NEX_ETA_END #NZ_BEGIN #NZ_END #material_id 1091 15 1 12 1 9 1
Interfaces file¶
The interfaces file defines the topography and layer structure of the mesh.
# number of interfaces
1
#
# We describe each interface below, structured as a 2D-grid, with several parameters :
# number of points along XI and ETA, minimal XI ETA coordinates
# and spacing between points which must be constant.
# Then the records contain the Z coordinates of the NXI x NETA points.
#
# interface number 1 (topography, top of the mesh)
.true. 2 2 0.0 0.0 1000.0 1000.0
DATA/meshfem3D_files/interface1.txt
#
# for each layer, we give the number of spectral elements in the vertical direction
#
# layer number 1 (top layer)
9
The interfaces file describes:
The number of interfaces (in this case, 1 - the top surface)
For each interface: whether it’s defined by a file (.true.), the number of points along XI and ETA directions, the starting coordinates (0.0, 0.0), and spacing (1000.0, 1000.0)
The path to the interface data file
The number of spectral elements in the vertical direction for each layer (9 elements)
Interface data file¶
The interface data file contains the elevation values at the grid points:
0
0
0
0
In this case, all elevation values are 0, meaning we have a flat top surface.
Running xmeshfem3D¶
To execute the mesher run:
xmeshfem3D -p DATA/meshfem3D_files/Mesh_Par_file
Check the mesher generated files in the OUTPUT_FILES/DATABASES directory:
ls -ltr OUTPUT_FILES/DATABASES
You should see files including:
Database.bin- the mesh databasemesh.vtk- mesh visualization fileskewness.vtk- mesh quality visualization file
Defining receivers (stations)¶
In 3D simulations, we need to explicitly define the receiver locations using a STATIONS file.
X55 DB 40000.00 55000.00 0.0 0.0
X60 DB 41000.00 60000.00 0.0 0.0
X65 DB 42000.00 65000.00 0.0 0.0
X70 DB 44000.00 70000.00 0.0 0.0
X75 DB 46000.00 75000.00 0.0 0.0
X80 DB 49000.00 80000.00 0.0 0.0
X85 DB 52000.00 85000.00 0.0 0.0
X90 DB 56000.00 90000.00 0.0 0.0
X95 DB 60000.00 95000.00 0.0 0.0
Each line defines a station with the format:
STATION_NAME NETWORK_CODE X Y ELEVATION BURIAL
where:
X, Y are the horizontal coordinates in the mesh coordinate system
ELEVATION is the height above the surface (typically 0.0)
BURIAL is the depth below the surface (typically 0.0)
In this example, we have 9 stations distributed across the domain.
Defining sources¶
Next we define the sources using a YAML file. For a full description of parameters used to define sources refer to Source Description.
number-of-sources: 1
sources:
- force:
x : 51000.0
y : 43000.0
z : -31000.0
source_surf: false
fx : 0.0
fy : 0.0
fz : 1e14
Ricker:
factor: 1.0
tshift: 0.0
f0: 0.15
In this file, we define a single force source with:
Position: x=51000m, y=43000m, z=-31000m (note: negative z is depth)
Force components: fx=0, fy=0, fz=1e14 (vertical force)
Source time function: Ricker wavelet with center frequency 0.15 Hz
Configuring the solver¶
Now that we have generated a mesh and defined the sources and receivers, we need to
set up the solver. We define the configuration in a YAML file specfem_config.yaml.
For a full description of parameters refer to SPECFEM++ Parameter Documentation.
parameters:
header:
## Header information is used for logging. It is good practice to give your simulations explicit names
title: Isotropic Elastic simulation # name for your simulation
# A detailed description for your simulation
description: |
Material systems : Elastic domain (1)
Interfaces : None
Sources : Force source (1)
Boundary conditions : Neumann BCs on all edges
simulation-setup:
## quadrature setup
quadrature:
quadrature-type: GLL4
## Solver setup
solver:
time-marching:
time-scheme:
type: Newmark
dt: 0.16
nstep: 250
simulation-mode:
forward:
writer:
seismogram:
format: "ascii"
directory: "OUTPUT_FILES/results"
# display:
# format: VTKHDF
# directory: OUTPUT_FILES/
# field: displacement
# component: z
# simulation-field: forward
# time-interval: 5
receivers:
stations: "DATA/STATIONS"
angle: 0.0
seismogram-type:
- displacement
nstep_between_samples: 1
## Runtime setup
run-setup:
number-of-processors: 1
number-of-runs: 1
## databases
databases:
mesh-database: "OUTPUT_FILES/DATABASES/Database.bin"
## sources
sources: "force.yaml"
At this point let’s focus on a few sections in this file:
Configure the solver using the
simulation-setupsection:specfem_config.yaml¶13 simulation-setup: 14 ## quadrature setup 15 quadrature: 16 quadrature-type: GLL4 17 18 ## Solver setup 19 solver: 20 time-marching: 21 time-scheme: 22 type: Newmark 23 dt: 0.16 24 nstep: 250 25 26 simulation-mode: 27 forward: 28 writer: 29 seismogram: 30 format: "ascii" 31 directory: "OUTPUT_FILES/results"
We define the integration quadrature to be used in the simulation (
GLL4)Define the time-stepping scheme (Newmark), time step (0.16s), and number of steps (250)
Set the output format for seismograms to ASCII
Define receiver (station) configuration:
specfem_config.yaml¶41 receivers: 42 stations: "DATA/STATIONS" 43 angle: 0.0 44 seismogram-type: 45 - displacement 46 nstep_between_samples: 1
Specify the path to the STATIONS file
Set the seismogram type to displacement
Set the sampling rate (nstep_between_samples=1 means sample every time step)
Define the path to the mesh database and source description file:
specfem_config.yaml¶54 databases: 55 mesh-database: "OUTPUT_FILES/DATABASES/Database.bin" 56 57 ## sources 58 sources: "force.yaml"
Running the solver¶
Finally, to run the SPECFEM++ solver:
specfem3d -p specfem_config.yaml
Note
Make sure either you are in the executable directory of SPECFEM++ or the
executable directory is added to your PATH.
The solver will output progress information to the terminal and write seismograms
to the OUTPUT_FILES/results directory.
Visualizing seismograms¶
Let us now plot the source-station geometry and the traces generated by the solver. The following Python script reads the ASCII seismogram files and creates two separate plots:
Source-station geometry with distance circles
Seismograms for each component (MXX, MXY, MXZ) sorted by epicentral distance
1import numpy as np
2import matplotlib.pyplot as plt
3import matplotlib.gridspec as gridspec
4import glob
5import yaml
6from matplotlib.patches import Circle
7
8
9def read_stations(filename):
10 """Read STATIONS file"""
11 stations = []
12 with open(filename, "r") as f:
13 for line in f:
14 if line.strip():
15 parts = line.strip().split()
16 station = parts[0]
17 network = parts[1]
18 y = float(parts[2]) # latitude/UTM_Y
19 x = float(parts[3]) # longitude/UTM_X
20 elevation = float(parts[4])
21 burial = float(parts[5])
22 stations.append(
23 {
24 "station": station,
25 "network": network,
26 "x": x,
27 "y": y,
28 "elevation": elevation,
29 "burial": burial,
30 }
31 )
32 return stations
33
34
35def read_yaml_source(filename):
36 """Read source parameters from YAML file"""
37 with open(filename, "r") as f:
38 data = yaml.safe_load(f)
39 source_params = data["sources"][0]["force"]
40 source = {
41 "x": source_params["x"],
42 "y": source_params["y"],
43 "z": source_params["z"],
44 }
45 return source
46
47
48def read_seismogram(filename):
49 """Read seismogram file"""
50 data = np.loadtxt(filename)
51 return data[:, 0], data[:, 1] # time, displacement
52
53
54def calculate_epicentral_distance(station_x, station_y, source_x, source_y):
55 """Calculate epicentral distance"""
56 return np.sqrt((station_x - source_x) ** 2 + (station_y - source_y) ** 2)
57
58
59def main():
60 # Read station and source data
61 stations = read_stations("DATA/STATIONS")
62 source = read_yaml_source("force.yaml")
63
64 # Calculate epicentral distances and sort stations
65 for station in stations:
66 station["distance"] = calculate_epicentral_distance(
67 station["x"], station["y"], source["x"], source["y"]
68 )
69
70 stations_sorted = sorted(stations, key=lambda x: x["distance"])
71
72 # ========================================
73 # Figure 1: Source-Station Geometry
74 # ========================================
75 fig1 = plt.figure(figsize=(8, 8))
76 ax1 = fig1.add_subplot(111)
77
78 # Plot stations
79 for station in stations:
80 ax1.plot(
81 station["x"],
82 station["y"],
83 "rv",
84 markersize=8,
85 label="Stations" if station == stations[0] else "",
86 )
87 ax1.text(
88 station["x"],
89 station["y"] + 1000,
90 station["station"],
91 ha="center",
92 va="bottom",
93 fontsize=8,
94 )
95
96 # Plot source
97 ax1.plot(source["x"], source["y"], "r*", markersize=15, label="Source")
98
99 # Add circular distance grid
100 max_dist = max([s["distance"] for s in stations])
101 circles = [5000, 10000, 15000, 20000, 25000, 30000, 35000, 40000]
102 for radius in circles:
103 if radius <= max_dist * 1.2:
104 circle = Circle(
105 (source["x"], source["y"]),
106 radius,
107 fill=False,
108 linestyle="--",
109 alpha=0.3,
110 color="gray",
111 )
112 ax1.add_patch(circle)
113 # Add distance labels
114 ax1.text(
115 source["x"] + radius * 0.7,
116 source["y"] + radius * 0.7,
117 f"{radius / 1000:.0f}km",
118 fontsize=8,
119 alpha=0.7,
120 )
121
122 ax1.set_xlabel("X (UTM)")
123 ax1.set_ylabel("Y (UTM)")
124 ax1.set_title("Source-Station Geometry")
125 ax1.legend()
126 ax1.grid(True, alpha=0.3)
127 ax1.set_aspect("equal")
128
129 plt.savefig("OUTPUT_FILES/geometry.png", dpi=300, bbox_inches="tight")
130 print("Saved source-station geometry plot to OUTPUT_FILES/geometry.png")
131
132 # Find seismogram files (current output)
133 seismogram_files = {
134 "MXX": sorted(glob.glob("OUTPUT_FILES/results/*.S3.MXX.semd")),
135 "MXY": sorted(glob.glob("OUTPUT_FILES/results/*.S3.MXY.semd")),
136 "MXZ": sorted(glob.glob("OUTPUT_FILES/results/*.S3.MXZ.semd")),
137 }
138
139 # Find reference seismogram files
140 reference_seismogram_files = {
141 "MXX": sorted(glob.glob("reference_seismograms/*.S3.MXX.semd")),
142 "MXY": sorted(glob.glob("reference_seismograms/*.S3.MXY.semd")),
143 "MXZ": sorted(glob.glob("reference_seismograms/*.S3.MXZ.semd")),
144 }
145
146 # Read all seismograms and find common time range
147 all_seismograms = {}
148 reference_seismograms = {}
149 time_range = None
150 max_displacement = 0
151
152 for component in ["MXX", "MXY", "MXZ"]:
153 all_seismograms[component] = {}
154 reference_seismograms[component] = {}
155
156 # Read current output seismograms
157 for filename in seismogram_files[component]:
158 # Extract station name from filename
159 station_name = filename.split("/")[-1].split(".")[1]
160 time, displacement = read_seismogram(filename)
161 all_seismograms[component][station_name] = (time, displacement)
162
163 # Update global ranges
164 if time_range is None:
165 time_range = (time.min(), time.max())
166 else:
167 time_range = (
168 min(time_range[0], time.min()),
169 max(time_range[1], time.max()),
170 )
171 max_displacement = max(max_displacement, np.abs(displacement).max())
172
173 # Read reference seismograms
174 for filename in reference_seismogram_files[component]:
175 # Extract station name from filename
176 station_name = filename.split("/")[-1].split(".")[1]
177 time, displacement = read_seismogram(filename)
178 reference_seismograms[component][station_name] = (time, displacement)
179
180 # Update global ranges
181 if time_range is None:
182 time_range = (time.min(), time.max())
183 else:
184 time_range = (
185 min(time_range[0], time.min()),
186 max(time_range[1], time.max()),
187 )
188 max_displacement = max(max_displacement, np.abs(displacement).max())
189
190 # ========================================
191 # Figure 2: Seismograms
192 # ========================================
193 fig2 = plt.figure(figsize=(15, 6))
194 gs = gridspec.GridSpec(1, 3, hspace=0.3, wspace=0.3)
195
196 # Plot seismograms for each component
197 components = ["MXX", "MXY", "MXZ"]
198
199 for i, component in enumerate(components):
200 ax = fig2.add_subplot(gs[0, i])
201
202 # Plot seismograms sorted by epicentral distance
203 y_spacing = max_displacement * 2.5
204
205 for j, station in enumerate(stations_sorted):
206 station_name = station["station"]
207
208 # Plot current output seismogram
209 if station_name in all_seismograms[component]:
210 time, displacement = all_seismograms[component][station_name]
211
212 # Normalize and offset displacement
213 normalized_disp = displacement / max_displacement * y_spacing * 0.8
214 y_pos = j * y_spacing
215
216 ax.plot(
217 time,
218 normalized_disp + y_pos,
219 "k-",
220 linewidth=0.8,
221 label="specfem++" if j == 0 else "",
222 )
223
224 # Plot reference seismogram
225 if station_name in reference_seismograms[component]:
226 time_ref, displacement_ref = reference_seismograms[component][
227 station_name
228 ]
229
230 # Normalize and offset displacement
231 normalized_disp_ref = (
232 displacement_ref / max_displacement * y_spacing * 0.8
233 )
234 y_pos = j * y_spacing
235
236 ax.plot(
237 time_ref,
238 normalized_disp_ref + y_pos,
239 "r--",
240 linewidth=0.8,
241 alpha=0.7,
242 label="xspecfem3D" if j == 0 else "",
243 )
244
245 # Add station label and distance
246 if (
247 station_name in all_seismograms[component]
248 or station_name in reference_seismograms[component]
249 ):
250 ax.text(
251 time_range[0] - (time_range[1] - time_range[0]) * 0.05,
252 y_pos,
253 f"{station_name}\n({station['distance'] / 1000:.1f}km)",
254 ha="right",
255 va="center",
256 fontsize=8,
257 )
258
259 ax.set_xlabel("Time (s)")
260 ax.set_title(f"Component {component}")
261 ax.set_xlim(time_range)
262 ax.grid(True, alpha=0.3)
263
264 # Add legend for the first component only
265 if i == 0:
266 ax.legend(loc="upper left", fontsize=8, fancybox=False)
267
268 # Set y-axis limits to show all traces properly
269 if len(stations_sorted) > 0:
270 ax.set_ylim(
271 -y_spacing * 0.5,
272 (len(stations_sorted) - 1) * y_spacing + y_spacing * 0.5,
273 )
274
275 # Remove y-tick labels since they're just offsets
276 ax.set_yticklabels([])
277
278 # Set aspect ratio for seismogram plots to be consistent
279 ax.set_aspect("auto")
280
281 plt.savefig("OUTPUT_FILES/seismograms.png", dpi=300, bbox_inches="tight")
282 print("Saved seismograms plot to OUTPUT_FILES/seismograms.png")
283
284 plt.show(block=False)
285
286
287if __name__ == "__main__":
288 main()
To run the plotting script:
python plot_seismograms.py
This will create two plots in the OUTPUT_FILES directory:
geometry.png- showing the source-station geometryseismograms.png- showing the recorded seismograms for all three displacement components
Source-station geometry. The source is marked by a red star and stations by red triangles. Concentric circles indicate epicentral distances in kilometers.¶
Seismograms recorded at stations distributed across the homogeneous halfspace. The three panels show displacement components (MXX, MXY, MXZ), with traces sorted by epicentral distance from top to bottom.¶
[Optional] Visualizing the wavefield¶
To visualize the wavefield propagation through the homogeneous halfspace, we
have a couple of prerequisites. First, SPECFEM++ must be built with VTK and
HDF5 support. Second, Paraview (https://www.paraview.org/) needs to be installed
on your system to visualize the output files. Once these prerequisites are met,
we can uncomment display section in the specfem_config.yaml file to
include the following configuration:
display:
format: VTKHDF
directory: OUTPUT_FILES/
field: displacement
component: z
simulation-field: forward
time-interval: 5
Rerun the solver with the updated configuration. Then open Paraview and load the
generated VTK files from the OUTPUT_FILES directory to visualize the wavefield
propagation.

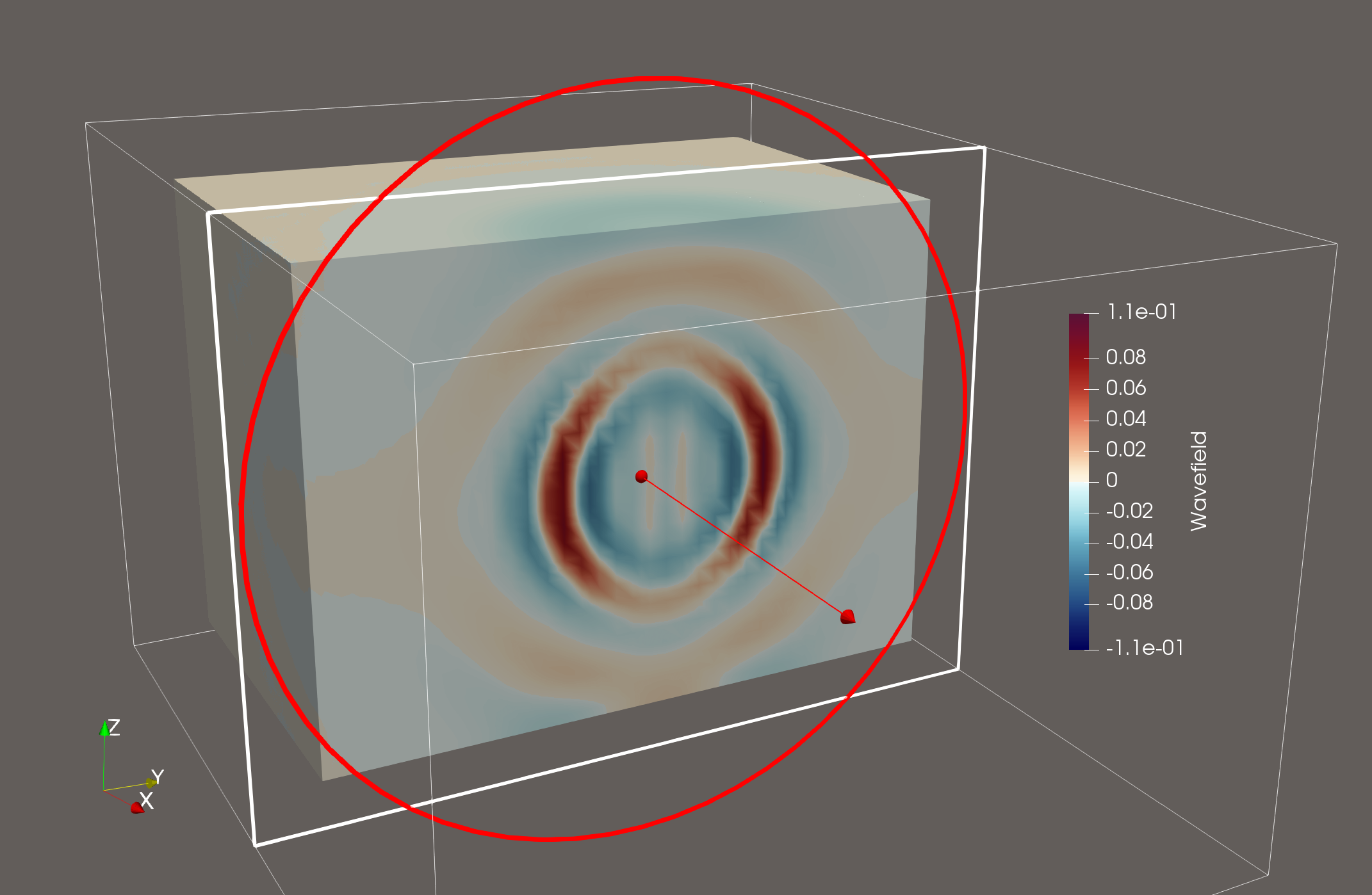

Snapshot of the vertical displacement wavefield propagating through the homogeneous halfspace at a given time step. We sliced the cube halfway along the X-axis to visualize the wavefield inside the volume.¶
