Fluid-solid interface with bathymetry¶

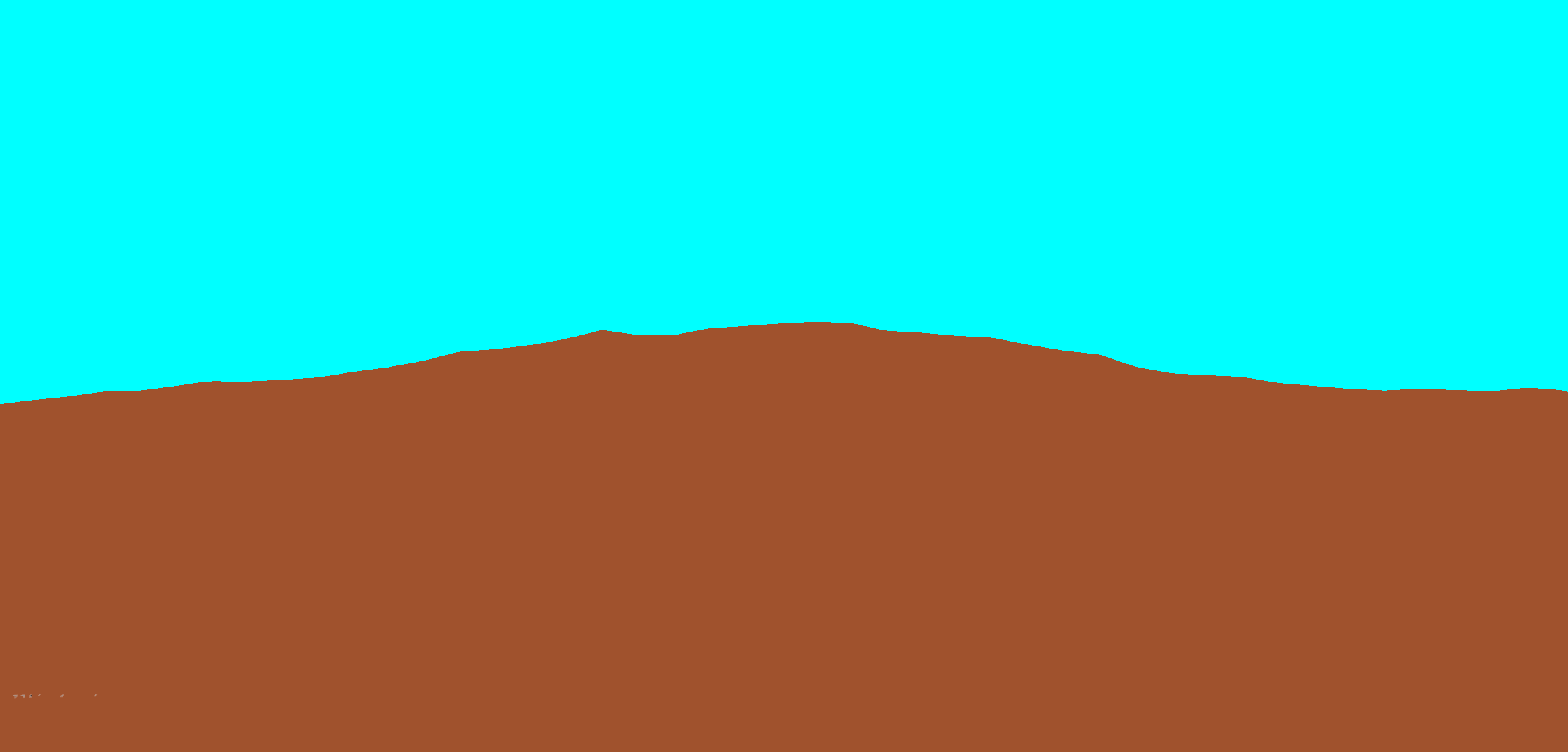

This example (see benchmarks/src/dim2/fluid-solid-bathymetry)
simulates wave propagation in a tele-seismic plane wave scenario within a
fluid-solid domain with complex bathymetry. This example demonstrates the use of
the xmeshfem2D mesher to generate interface between 2 conforming material
systems with realistic seafloor topography and the setting up absorbing boundary
conditions. This example is contributed by Sirawich Pipatprathanporn and is part
of the publication Pipatprathanporn et al.
(2024).
Setting up the workspace¶
Let’s start by creating a workspace from where we can run this example.
mkdir -p ~/specfempp-examples/fluid-solid-bathymetry
cd ~/specfempp-examples/fluid-solid-bathymetry
We also need to check that the SPECFEM++ executable directory is added to the
PATH.
which specfem2d
If the above command returns a path to the specfem2d executable, then the
executable directory is added to the PATH. If not, you need to add the
executable directory to the PATH using the following command.
export PATH=$PATH:<PATH TO SPECFEM++ DIRECTORY/bin>
Note
Make sure to replace <PATH TO SPECFEM++ DIRECTORY/bin> with the actual
path to the SPECFEM++ directory on your system.
Now let’s create the necessary directories to store the input files and output artifacts.
mkdir -p OUTPUT_FILES
mkdir -p OUTPUT_FILES/seismograms
mkdir -p OUTPUT_FILES/results
mkdir -p OUTPUT_FILES/display
touch specfem_config.yaml
touch line_source.yaml
touch topography_file.dat
touch Par_file
Meshing the domain¶
We first start by generating a mesh for our simulation domain using
xmeshfem2D. To do this, we first define our simulation domain and the
meshing parameters in a parameter file.
Parameter file¶
Par_file¶
#-----------------------------------------------------------
#
# Simulation input parameters
#
#-----------------------------------------------------------
# title of job
title = fluid-solid-bathymetry
# parameters concerning partitioning
NPROC = 1 # number of processes
# Output folder to store mesh related files
OUTPUT_FILES = OUTPUT_FILES
#-----------------------------------------------------------
#
# Mesh
#
#-----------------------------------------------------------
# Partitioning algorithm for decompose_mesh
PARTITIONING_TYPE = 3 # SCOTCH = 3, ascending order (very bad idea) = 1
# number of control nodes per element (4 or 9)
NGNOD = 9
# location to store the mesh
database_filename = OUTPUT_FILES/database.bin
#-----------------------------------------------------------
#
# Receivers
#
#-----------------------------------------------------------
# use an existing STATION file found in ./DATA or create a new one from the receiver positions below in this Par_file
use_existing_STATIONS = .false.
# number of receiver sets (i.e. number of receiver lines to create below)
nreceiversets = 2
# orientation
anglerec = 0.d0 # angle to rotate components at receivers
rec_normal_to_surface = .false. # base anglerec normal to surface (external mesh and curve file needed)
# first receiver set (repeat these 6 lines and adjust nreceiversets accordingly)
nrec = 1 # number of receivers
xdeb = 1.000d+04 # first receiver x in meters
zdeb = 8.082d+03 # first receiver z in meters
xfin = 1.000d+04 # last receiver x in meters (ignored if only one receiver)
zfin = 8.082d+03 # last receiver z in meters (ignored if only one receiver)
record_at_surface_same_vertical = .false. # receivers inside the medium or at the surface
# second receiver set (repeat these 6 lines and adjust nreceiversets accordingly)
nrec = 1 # number of receivers
xdeb = 1.000d+04 # first receiver x in meters
zdeb = 5.472d+03 # first receiver z in meters
xfin = 1.000d+04 # last receiver x in meters (ignored if only one receiver)
zfin = 5.472d+03 # last receiver z in meters (ignored if only one receiver)
record_at_surface_same_vertical = .false. # receivers inside the medium or at the surface
# filename to store stations file
stations_filename = OUTPUT_FILES/STATIONS
#-----------------------------------------------------------
#
# Velocity and density models
#
#-----------------------------------------------------------
# number of model materials
nbmodels = 2
# available material types (see user manual for more information)
# acoustic: model_number 1 rho Vp 0 0 0 QKappa Qmu 0 0 0 0 0 0
# elastic: model_number 1 rho Vp Vs 0 0 QKappa Qmu 0 0 0 0 0 0
# anistoropic: model_number 2 rho c11 c13 c15 c33 c35 c55 c12 c23 c25 0 0 0
# poroelastic: model_number 3 rhos rhof phi c kxx kxz kzz Ks Kf Kfr etaf mufr Qmu
# tomo: model_number -1 0 9999 9999 A 0 0 9999 9999 0 0 0 0 0
1 1 2500.d0 3400.d0 1963.d0 0 0 9999 9999 0 0 0 0 0 0
2 1 1020.d0 1500.d0 0.d0 0 0 9999 9999 0 0 0 0 0 0
# external tomography file
TOMOGRAPHY_FILE = ./DATA/tomo_file.xyz
# use an external mesh created by an external meshing tool or use the internal mesher
read_external_mesh = .false.
#-----------------------------------------------------------
#
# PARAMETERS FOR EXTERNAL MESHING
#
#-----------------------------------------------------------
# data concerning mesh, when generated using third-party app (more info in README)
# (see also absorbing_conditions above)
mesh_file = ./DATA/Mesh_canyon/canyon_mesh_file # file containing the mesh
nodes_coords_file = ./DATA/Mesh_canyon/canyon_nodes_coords_file # file containing the nodes coordinates
materials_file = ./DATA/Mesh_canyon/canyon_materials_file # file containing the material number for each element
free_surface_file = ./DATA/Mesh_canyon/canyon_free_surface_file # file containing the free surface
axial_elements_file = ./DATA/axial_elements_file # file containing the axial elements if AXISYM is true
absorbing_surface_file = ./DATA/Mesh_canyon/canyon_absorbing_surface_file # file containing the absorbing surface
acoustic_forcing_surface_file = ./DATA/MSH/Surf_acforcing_Bottom_enforcing_mesh # file containing the acoustic forcing surface
absorbing_cpml_file = ./DATA/absorbing_cpml_file # file containing the CPML element numbers
tangential_detection_curve_file = ./DATA/courbe_eros_nodes # file containing the curve delimiting the velocity model
#-----------------------------------------------------------
#
# PARAMETERS FOR INTERNAL MESHING
#
#-----------------------------------------------------------
# file containing interfaces for internal mesh
interfacesfile = topography_file.dat
# geometry of the model (origin lower-left corner = 0,0) and mesh description
xmin = 0.d0 # abscissa of left side of the model
xmax = 2.000d+04 # abscissa of right side of the model
nx = 250 # number of elements along X
STACEY_ABSORBING_CONDITIONS = .true. # use Stacey absorbing boundary conditions
# absorbing boundary parameters (see absorbing_conditions above)
absorbbottom = .true.
absorbright = .true.
absorbtop = .false.
absorbleft = .true.
# define the different regions of the model in the (nx,nz) spectral-element mesh
nbregions = 2 # then set below the different regions and model number for each region
1 250 1 62 1
1 250 63 120 2
#-----------------------------------------------------------
#
# DISPLAY PARAMETERS
#
#-----------------------------------------------------------
# meshing output
output_grid_Gnuplot = .false. # generate a GNUPLOT file containing the grid, and a script to plot it
output_grid_ASCII = .false. # dump the grid in an ASCII text file consisting of a set of X,Y,Z points or not
